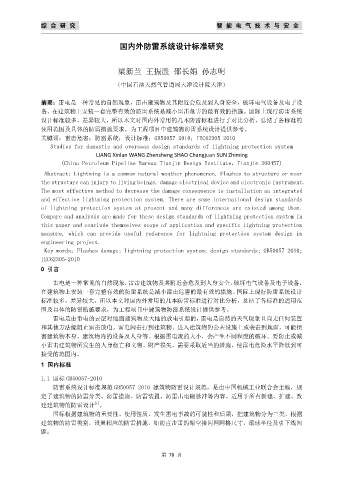

综 合 研 究                                                       智 能 电 气 技 术 与 安 全


                                           国内外防雷系统设计标准研究




                                          梁新兰 王振胜 邵长娟 孙志明

                                         (中国石油天然气管道局天津设计院天津)


               摘要:雷电是一种常见的自然现象,雷击建筑物及其附近会危及到人身安全,破坏电气设备及电子设
               备,在建筑物上安装一套完整有效的防雷系统是减小雷击危害的最有效的措施。国际上现行防雷系统
               设计标准较多,差异较大,所以本文对国内外常用的几本防雷标准进行了对比分析,总结了各标准的
               使用范围及具体的防雷措施要求,为工程项目中建筑物防雷系统设计提供参考。
               关键词:雷击危害;防雷系统;设计标准;GB50057-2010;IEC62305-2010
                   Studies for domestic and overseas design standards of lightning protection system
                                   LIANG Xinlan WANG Zhensheng SHAO Changjuan SUN Zhiming
                      (China Petroleum Pipeline Bureau Tianjin Design Institute,Tianjin 300457)
                 Abstract: Lightning is a common natural weather phenomenon. Flashes to structure or near
               the structure can injury to living beings, damage electrical device and electronic instrument.
               The most effective method to decrease the damage consequence is installation an integrated
               and effective lightning protection system. There are some international design standards
               of lightning protection system at present and many differences are existed among them.
               Compare and analysis are made for these design standards of lightning protection system in
               this paper and conclude themselves scope of application and specific lightning protection
               measure, which can provide useful reference for lightning protection system design in
               engineering project.
                 Key words:Flashes damage; lightning protection system; design standards; GB50057-2010;
               IEC62305-2010
               0 引言

                    雷电是一种常见的自然现象,雷击建筑物及其附近会危及到人身安全,破坏电气设备及电子设备,
               在建筑物上安装一套完整有效的防雷系统是减小雷击危害的最有效的措施。国际上现行防雷系统设计
               标准较多,差异较大,所以本文对国内外常用的几本防雷标准进行对比分析,总结了各标准的适用范
               围及具体的防雷措施要求,为工程项目中建筑物防雷系统设计提供参考。
                    雷电是由带电的云层对地面建筑物及大地的放电引起的,雷电是自然的天气现象且尚无任何装置
               和其他方法能阻止雷击放电。雷电闪击打到建筑物、进入建筑物的公共设施上或袭击到地面,可能损
               害建筑物本身、建筑物内的设备及人身等。根据雷电流的大小,会产生不同程度的破坏。要防止或减
               小雷击建筑物所发生的人身伤亡和文物、财产损失,需要采取适当的措施,使雷电危险水平降低到可
               接受的范围内。
               1 国内标准

               1.1 国标 GB50057-2010
                    防雷系统设计标准规范 GB50057-2010 建筑物防雷设计规范,是由中国机械工业联合会主编,规
               定了建筑物的防雷分类、防雷措施、防雷装置、防雷击电磁脉冲等内容。适用于所有新建、扩建、改
                                  [1]
               建建筑物的防雷设计 。
                    国标根据建筑物的重要性、使用性质、发生雷电事故的可能性和后果,把建筑物分为三类,根据
               建筑物的防雷类别,设置相应的防雷措施,如防直击雷的架空接闪网网格尺寸,滚球半径及引下线间
               距:
